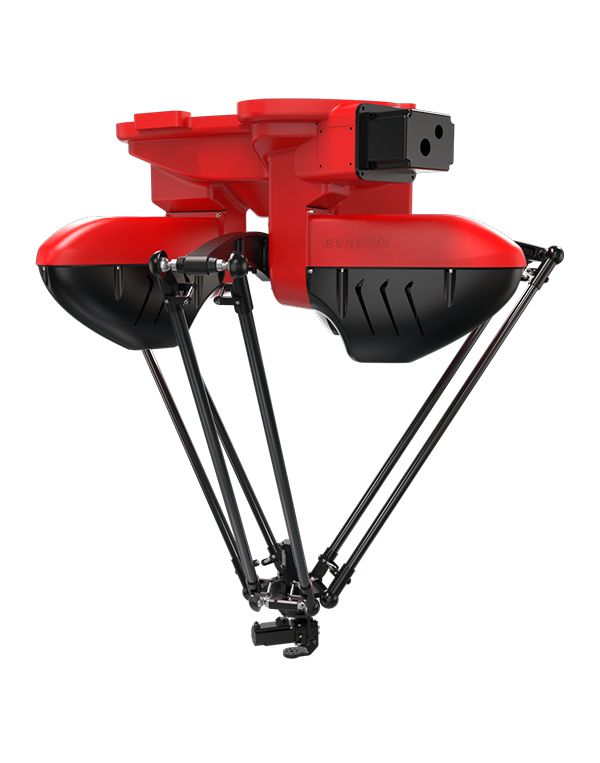

BRTIRPL1203A 五轴机器人
$62,000.00
【产品详情】

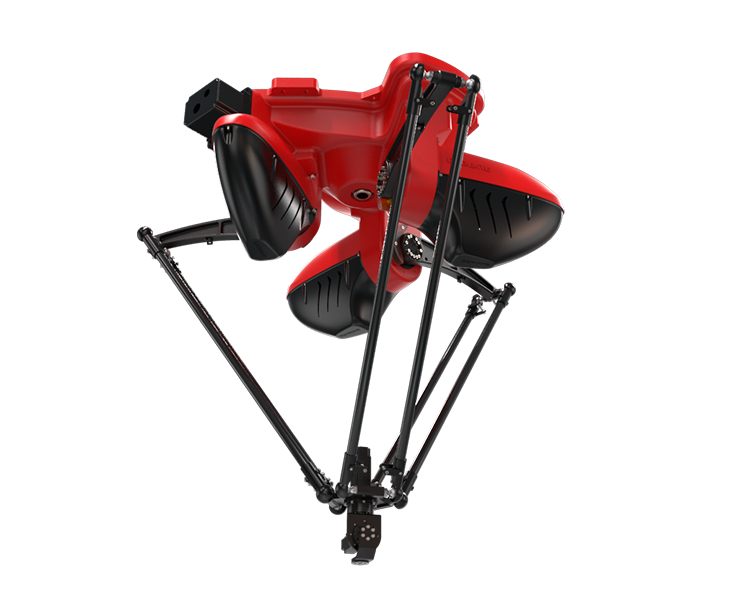

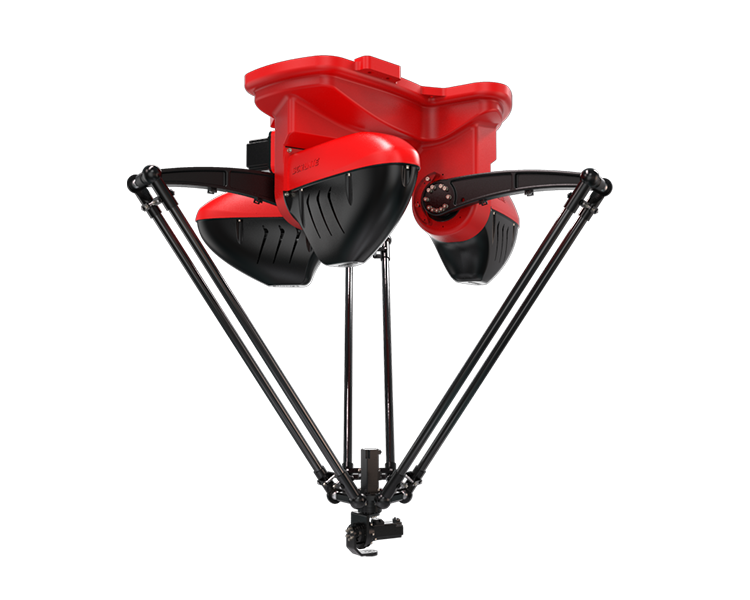

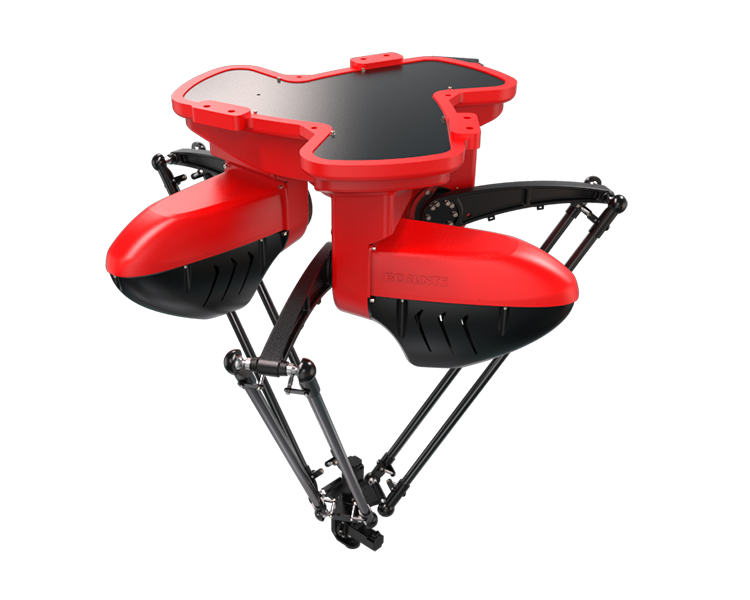

BRTIRPL1203A是伯朗特针对轻小散乱物料的装配、分拣等应用场景开发的五轴机器人，可以实现水平抓取，翻转竖直放置，可以搭配视觉，其拥有1200mm臂展，最大负载可达3kg。
精度高：重复定位精度±0.1mm。
【主要规格】
适用场景：分拣、搬运
最大负载：3 kg
电源容量：3.91 kVA
本体重量：约107 kg
【规格参数表】
| Item | Range | Rhythm (time/min)
| Master Arm | Upper | 35° | stroke:25/305/25(mm)
| Hem | 83° | 0kg | 3kg
| Rotation Angle | J4 | ±360° | 143time/min
| J5 | ±90
Description
BRTIRPL1203A is a five axis robot developed by BORUNTE for the assembly, sorting and other application scenarios of light and small scattered materials. It can achieve horizontal grasping, flipping and vertical placement, and can be paired with vision. It has a 1200mm arm span and a maximum load of 3kg.
The repeat positioning accuracy is ±0.1mm.
Additional information
| 产品系列 | BRTIRPL Series |
|---|---|
| 横移行程(mm) | 1200 |
| 最大负载(kg) | 3 |
| 轴数 | 5 |
| 英文名称 | Five-axis robot |
