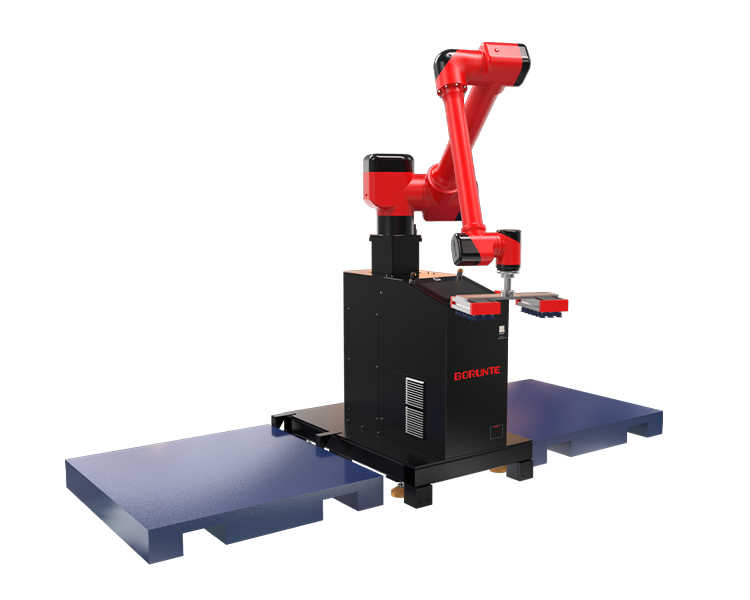

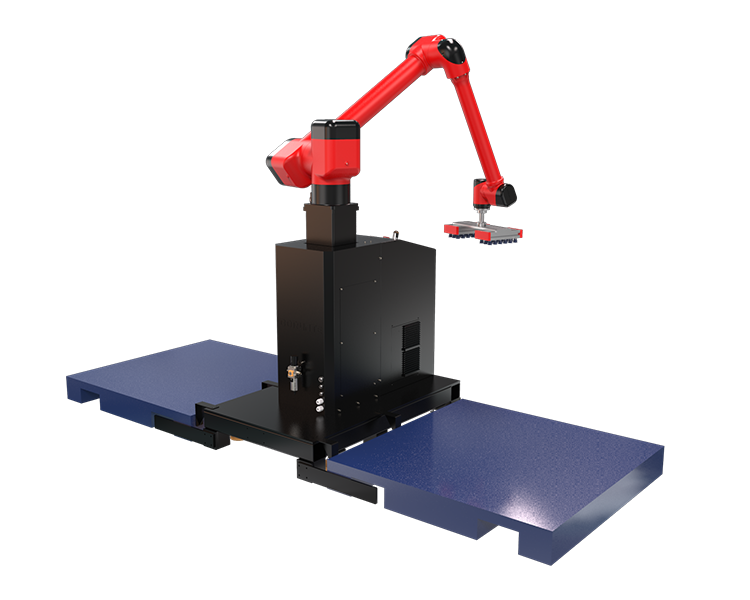

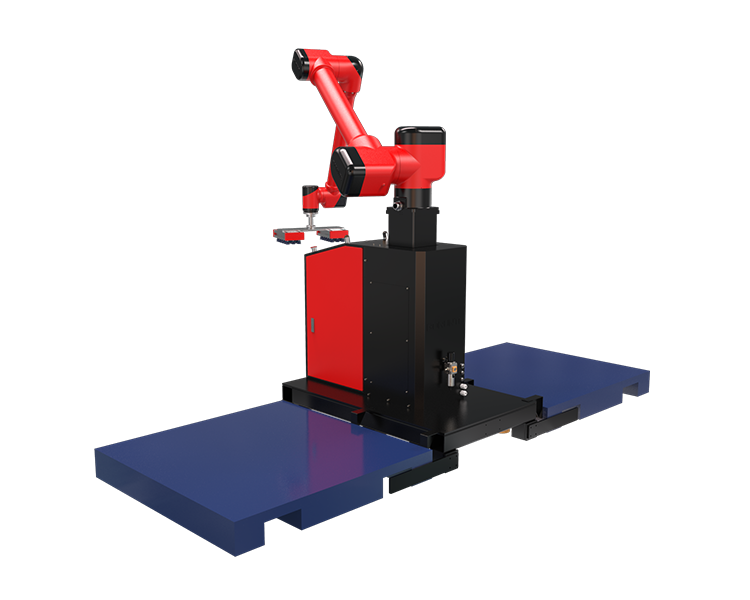

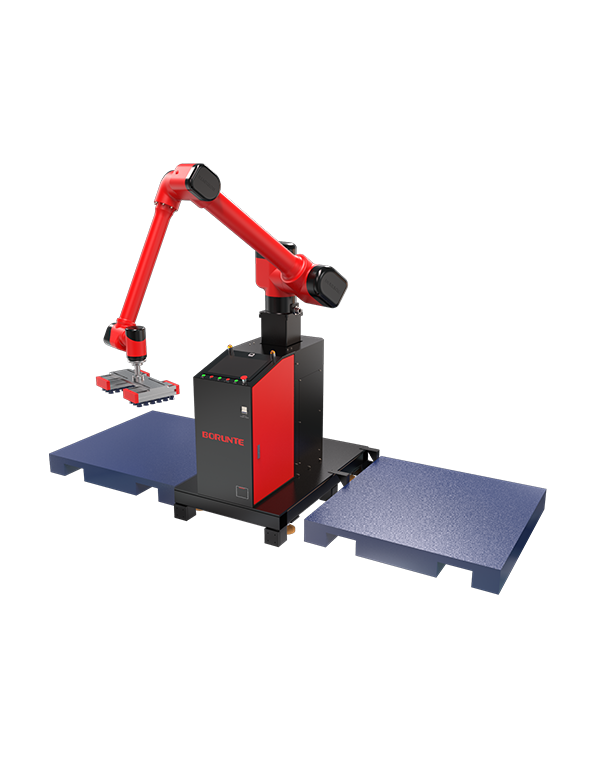

BRTMD195001A 50kg码垛工作站
$71,000.00
【产品详情】
BRTMD195001A是伯朗特针对码垛行业开发的一款工作站，其工作半径达到1895MM,负载50KG,采用升降台+专版码垛大屏系统构成，支持双语操作，可广泛应用于纸箱医药食品等多个行业生产线,提高产线智能化程度。 1.部署灵活：集成化设计，轻巧灵活，即插即用。 2.简易编程：图像化显示，编程操作简单高效，10分钟内就可轻松完成编程。 3.标配升降台，升降高度0-500MM。 4.码垛速度每分钟7-8箱,可轻松完成左右双码垛。 5.预留输送带连接孔位，客户需根据孔位自行配置输送带。
【主要规格】
适用场景：码垛
最大负载：50 kg
电源容量：5.76KVA kVA
本体重量：约487kg kg
【规格参数表】
| 配套机器人参数
| 项目 | 范围 | 最大速度
| 手臂 | J1 | ±180° | 140°/s
| J2 | ±180° | 135°/s
| J3 | -60°/+160° | 122°/s
| 手腕 | J4 | ±120° | 145°/s
| J5 | ±360° | 225°/s
| 升降轴 | 0~500mm | 250mm/s
| 基本参数
| 最大臂展 | 1895mm
| 最大负载 | 50KG
| 码垛高度 | 2350mm（含栈板高度）
| 码垛速度 | 7-8 pcs/min
| 重复定位精度 | ±0.1mm
| 机器重量 | 约487kg
| 额定电压 | 单向 AC220V
| 温度范围 | 温度：0°~40℃湿度：20-80%RH(无结露)
| 占地面积 | 1620*1350mm
| 设备总高 | 3m
BRTMD195001A is a workstation developed by BORUNTE for the palletizing industry, with a working radius of 1895MM and a load of 50KG. It is composed of a lifting platform and a specialized palletizing large screen system, supporting bilingual operation. It can be widely used in multiple industries such as cardboard boxes, pharmaceuticals, and food, improving the intelligence level of the production line. 1. Flexible deployment: Integrated design, lightweight and flexible, plug and play. 2. Easy programming: graphical display, simple and efficient programming operation, can be easily completed within 10 minutes. 3. Standard lifting platform with a lifting height of 0-500MM. 4. The Palletizing speed 9-10 boxes per minute, making it easy to complete both left and right palletizing. 5. Reserve connection holes for the conveyor belt, and customers need to configure the conveyor belt according to the hole positions themselves.
| 产品系列 | BRTMD19 Series |
|---|---|
| 横移行程(mm) | 1895 |
| 最大负载(kg) | 50 |
| 轴数 | |
| 英文名称 | 50kg Palletizing workstation |
