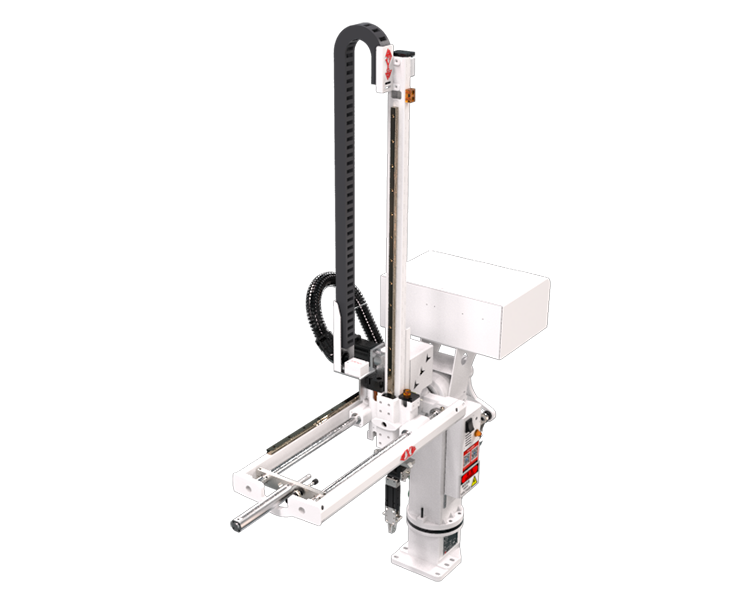

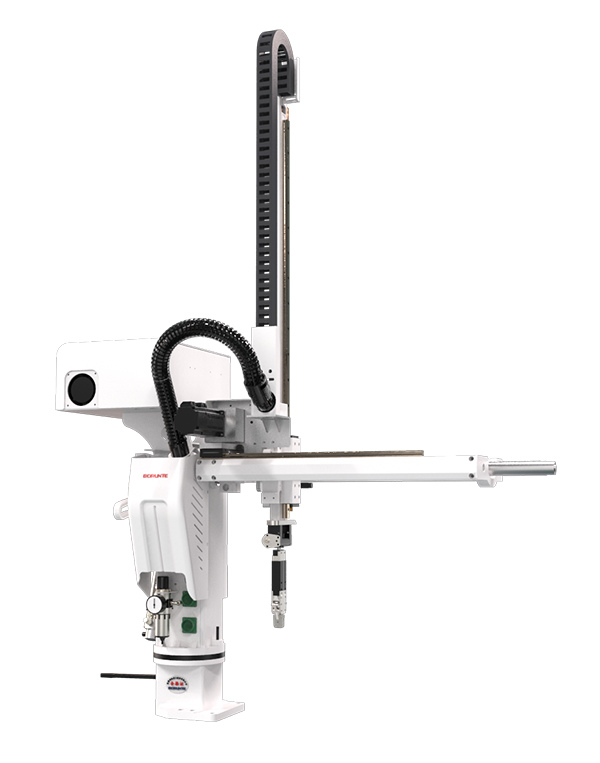

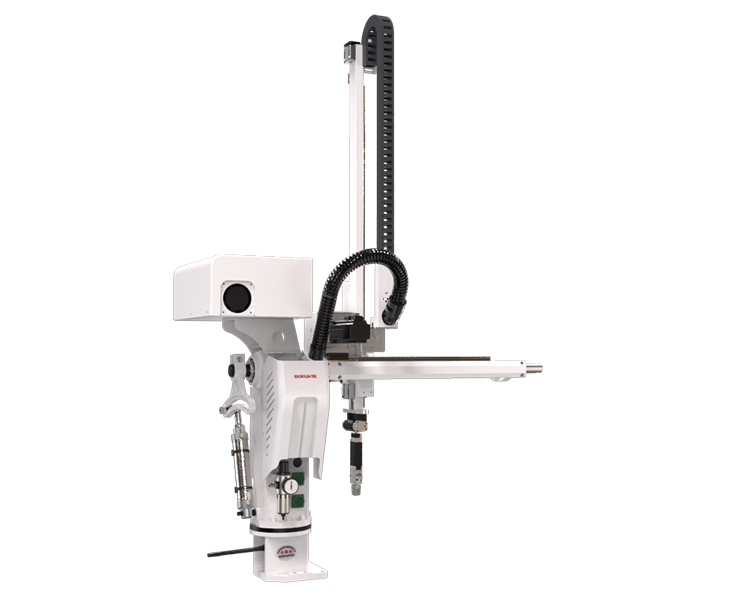

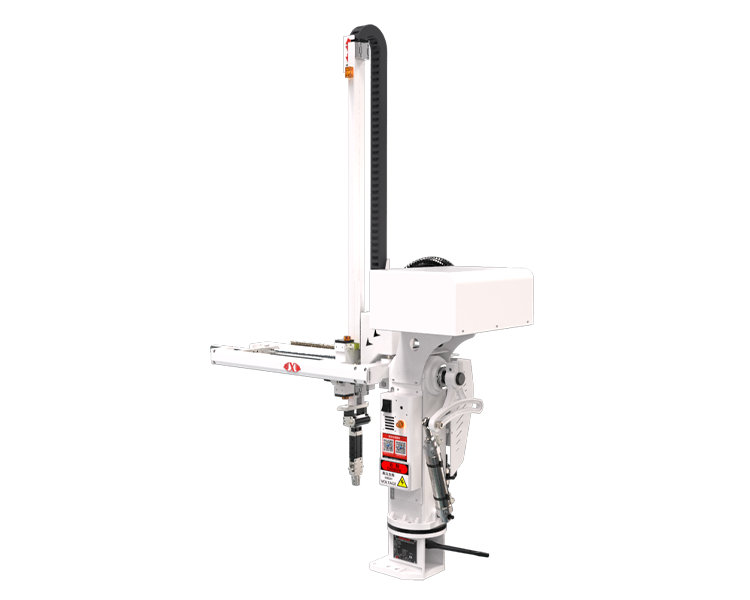

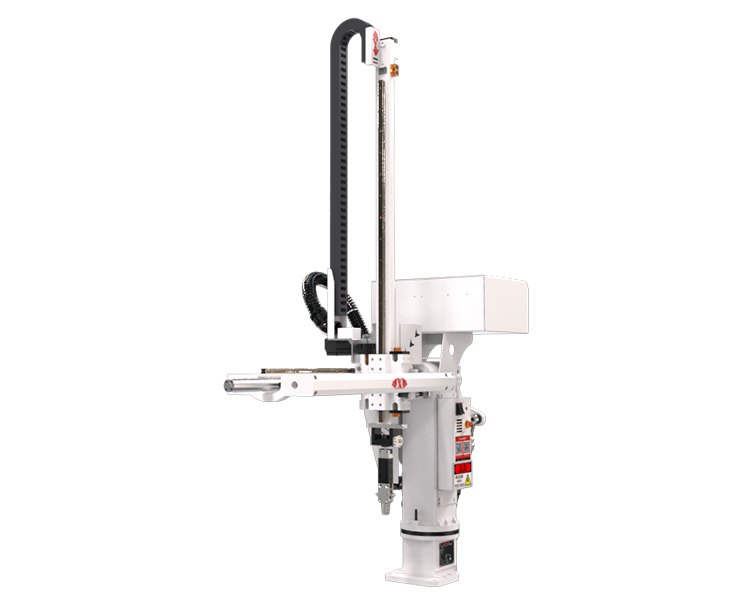

BRTP07ISS1PC 一轴伺服机械手
$11,000.00
【产品详情】
BRTP07ISS1PC 机型适用于60T-200T的各型卧式射出成型机的成品取出、上下手臂为单截式，上下采用AC伺服马达驱动，定位精准，速度快，寿命长，故障低，其余部位采用气压驱动，经济实惠。安装机械手可增加产能( 10-30% )降低产品的不良率，保障操作人员的安全性，减少人工，精准控制生产量，减少浪费。
【主要规格】
适用场景：注塑取件
适配注塑机：60T-200T
垂直行程：750 mm
横行行程：115 mm
横移行程：/ mm
循环时间：5 s
电源容量：1.27 kVA
末端执行器：零吸零抱
本体重量：50 kg
【规格参数表】
| 电源容量(kVA) | 适用成型机(ton) | 驱动方式 | 治具型式
| 1.27 | 60T-200T | AC伺服马达、气缸 | 零吸零抱
| 横行行程(mm) | 引拔行程(mm) | 上下行程(mm) | 最大荷载(kg)
| / | 115 | 750 | 2
| 取出时间(sec) | 全循环时间(sec) | 放出角度(degree) | 空气消耗量(NI/cycle)
| 1.4 | 5 | / | 3
| 重量(kg) | 定位精度(mm) | |
| 50 | ±0.05 | |
BRTP07ISS1PC series applies to all types of horizontal injection machines of 60T-200T for take-out products. The up and down arm is a single sectional type. The up and down action is driven by AC servo motor, with accurate positioning, fast speed, long service life, and low failure rate. The rest parts are driven by air pressure. It is economical and affordable. After installing this robot, productivity will be increased by 10-30% and will reduce the defective rate of products, ensure the safety of operators, reduce manpower and accurately control the output to reduce waste.
| 产品系列 | BRTP Series |
|---|---|
| 横移行程(mm) | 750 |
| 最大负载(kg) | 2 |
| 适配注塑机 | 60T-200T |
| 轴数 | |
| 英文名称 | One-axis servo Manipulator |
