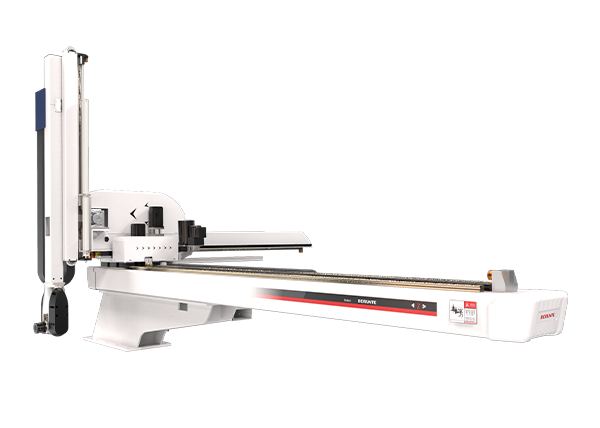

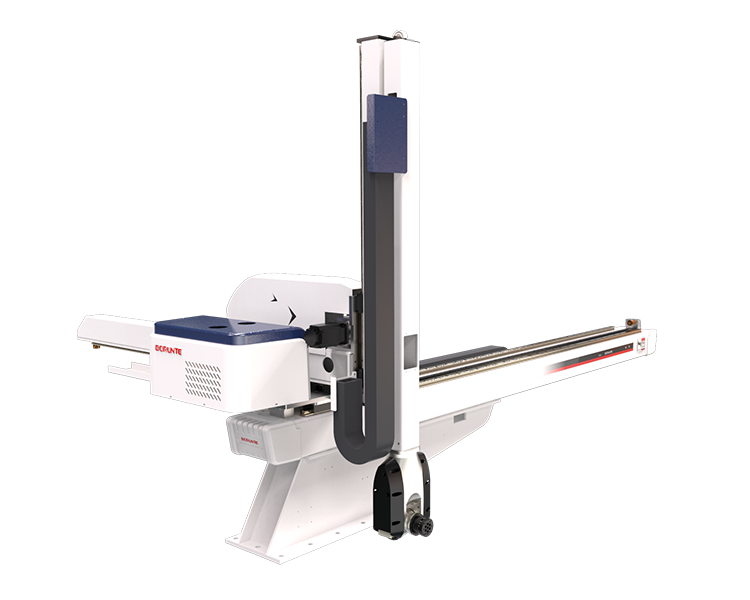

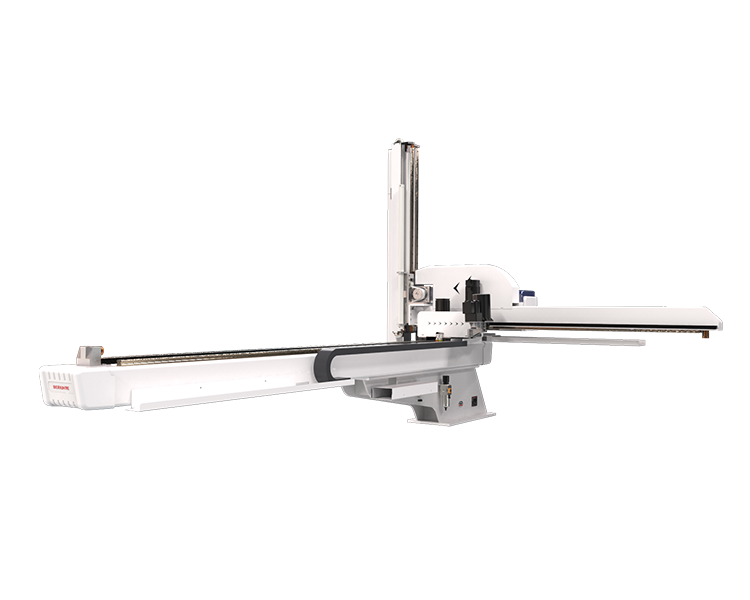

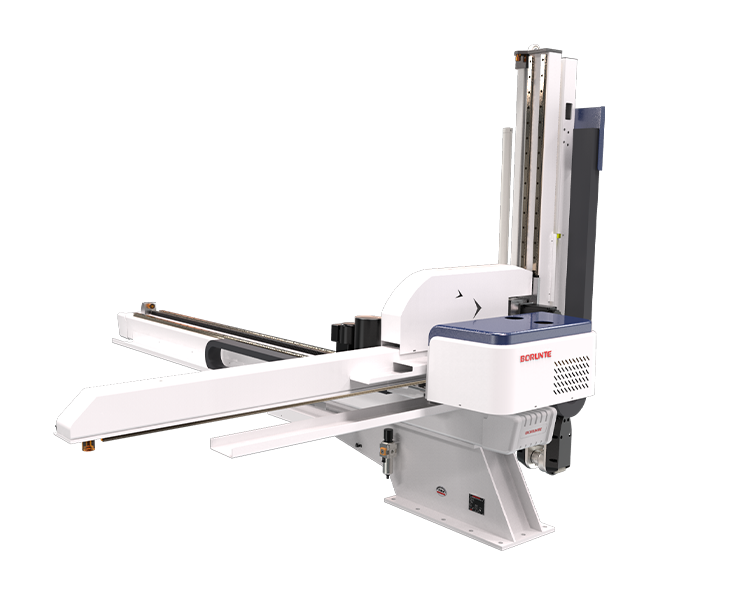

BRTN17WSS5PC 五轴伺服机械手
$46,000.00
【产品详情】
BRTN17WSS5PC 系列适用于 600T-1300T 的各种型塑胶射出成型机、五轴 AC 伺服驱动，标配 AC 伺服驱动轴，A 轴旋转角
360°，C 轴旋转角 180°，可自由定位调整夹具角度。两者寿命长，精度高，故障率低，维护简单，主要用于快速取出或是复杂角度取出应用、特别是长形状产品如汽车用品，洗衣机家电用品。
五轴驱控一体控制系统：信号线少，远距离通讯，扩展性能好，抗干扰能力强，重复定位精度高，可以同时控制多轴，设备维护简单，故障率少。
【主要规格】
适用场景：注塑取件、镶件埋入
适配注塑机：600T-1700T
垂直行程：1700 mm
横行行程：1415 mm
横移行程：2510 mm
循环时间：13.32 s
电源容量：4.23 kVA
末端执行器：四吸两抱
本体重量：585 kg
【规格参数表】
| 电源容量(kVA) | 适用成型机(ton) | 驱动方式 | 治具型式
| 4.23 | 600T-1700T | AC伺服马达 | 四吸两抱
| 横行行程(mm) | 引拔行程(mm) | 上下行程(mm) | 最大荷载(kg)
| 2510 | 1415 | 1700 | 20
| 取出时间(sec) | 全循环时间(sec) | 空气消耗量(NI/cycle) | 重量(kg)
| 4.45 | 13.32 | 15 | 585
| 定位精度(mm) | | |
| ±0.1 | | |
BRTN17WSS5PC series applies to various types of 600T-1300T plastic injection molding machines, five-axis AC servo drive, with AC servo axis on the wrist. The rotation angle of the A-axis: 360° , and the rotation angle
of the C-axis:180 ° , which can locate and adjust the angle of the fixture freely Both have a long life, high accuracy, low failure rate, and simple maintenance. It is mainly used for quick injection or complex angle injection, especially suitable for long shape products such as automotive products, washing machines, and household appliances.
five-axis driver and controller integrated system: fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high accuracy of repeated positioning, can simultaneously control multiple axes, simple equipment maintenance, and low failure rate.
| 产品系列 | BRTN Series |
|---|---|
| 横移行程(mm) | 1700 |
| 最大负载(kg) | 20 |
| 适配注塑机 | 600T-1700T |
| 轴数 | 5 |
| 英文名称 | Five-axis servo Manipulator |
