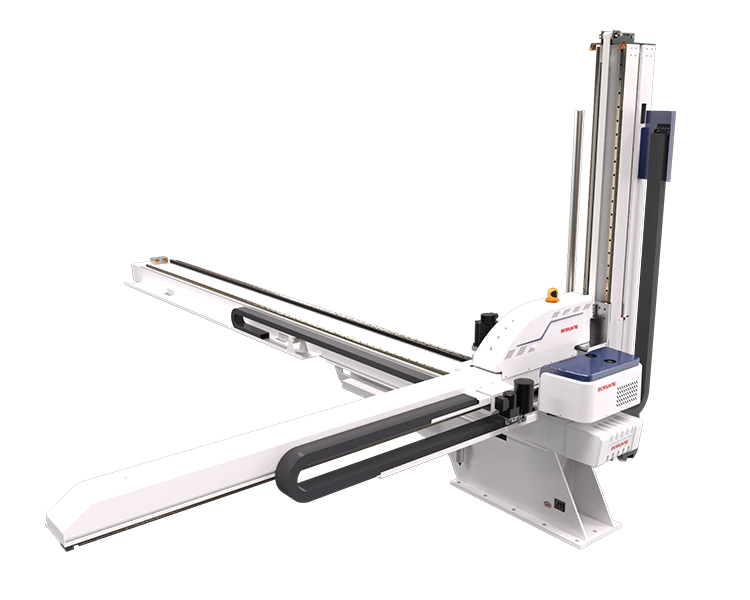

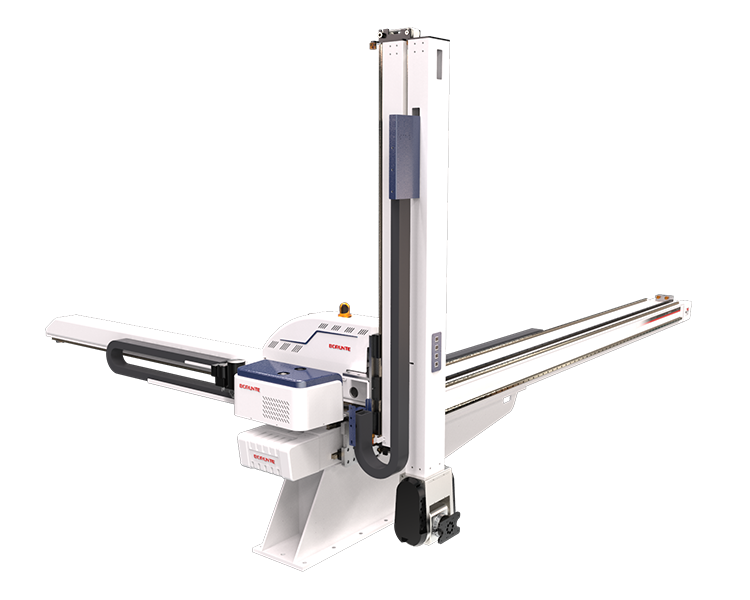

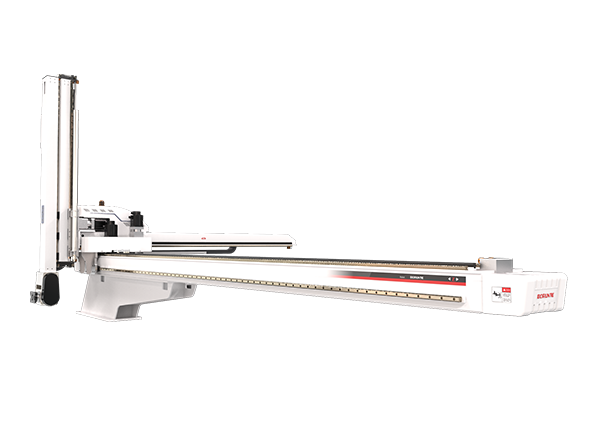

BRTN30WSS5PF 五轴伺服机械手
$116,000.00
【产品详情】
BRTN30WSS5PF 根据BRTN30WSS5PC非标定制，适用于2200T-4000T的各种型塑胶射出成型机，五轴AC伺服驱动，标配AC伺服驱动轴，A轴旋转角360°，C轴旋转角180°，可自由定位调整夹具角度，寿命长，精度高，故障率低，维护简单，主要用于快速去除或是复杂角度取出应用，特别是长形状产品如汽车品，洗衣机家电用品。
五轴驱控一体控制系统：信号线少，远距离通讯，扩展性能好，抗干扰能力强，重复定位精度高，可以同时控制多轴，设备维护简单，故障率少。
【主要规格】
适用场景：注塑取件、镶件埋入
适配注塑机：2200T-4000T
垂直行程：≤3000 mm
横移行程：≤6000 mm
本体重量：待定 kg
【规格参数表】
| 电源容量(kVA) | 适用成型机(ton) | 驱动方式 | 治具型式
| 6.1 | 2200T-4000T | AC伺服马达 | 四吸两抱
| 横行行程(mm) | 引拔行程(mm) | 上下行程(mm) | 最大荷载(kg)
| ≤6000 | ≤2500 | ≤3000 | 60
| 取出时间(sec) | 全循环时间(sec) | 空气消耗量(NI/cycle) | 重量(kg)
| 待定 | 待定 | 47 | 待定
The BRTN30WSS5PF is a customized non-standard product based on the BRTN30WSS5PC, suitable for various types of plastic injection molding machines with capacities ranging from 2200T to 4000T. It features five-axis AC servo drives, with standard AC servo drive axes. The A-axis has a rotation angle of 360°, while the C-axis has a rotation angle of 180°, allowing for free positioning and adjustment of the fixture angle. It boasts a long lifespan, high precision, low failure rate, and simple maintenance. It is primarily used for rapid removal or complex-angle extraction applications, especially for long-shaped products such as automotive parts, washing machines, and home appliances.
Five-axis drive and control integrated system: Few signal lines, long-distance communication, excellent scalability, strong anti-interference capability, high repeat positioning accuracy, capable of controlling multiple axes simultaneously, simple equipment maintenance, and low failure rate.
| 产品系列 | BRTN Series |
|---|---|
| 横移行程(mm) | ≤3000 |
| 最大负载(kg) | 60 |
| 适配注塑机 | 2200T-4000T |
| 轴数 | 5 |
| 英文名称 | Five-axis servo Manipulator |
